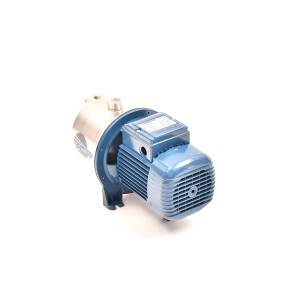

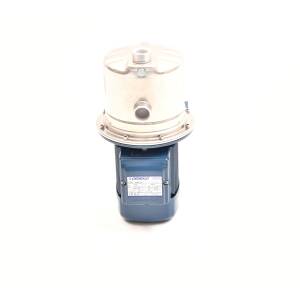

Pedrollo JCRm 2A Self-priming Jet Pump

Self-priming JET pump JCRm 2A - PEDROLLO

The self-priming pumps of the JCR series are designed to continue pumping even in the case of with sucked air. Especially recommended are the models of the JCR series for use from water distribution to irrigation of gardens or even orchards.

The pump is suitable for use in irrigation systems with a design of 1.8 m³/h at 3.5 bar for 3/4" (25 mm PE pipe) systems.

This pump is suitable for pumping clean water. This is the most powerful model in the JRC series, the JCRm 2A, which is suitable for single-phase power and reaches a flow rate of up to 5.1 m³/h and a maximum suction lift of up to 9 meters. The operating pressure reaches up to 6 bar and, accordingly, provides a head of up to 60 meters.Ideally, the pump is installed in a closed, well-ventilated place. However, an installation where the pump is at least protected from the weather is also sufficient. It is recommended to combine the pump with the PresFlo Vario or PresFlo Multi to automate starting and stopping and also to protect the pump from running dry. More information and the performance chart can be found here.

Dimensions

Length: 430 mm

Width: 240 mm

Height: 230 mm

Specifications :

Max. Head: 60 meters-Max.

Operating Pressure: 6 Bar-Manometric

Suction Head: max. 9 meters

Flow: up to 5.1 m³/h

Continuous Duty: Class S1
