Irrigation Controller Indoor Hunter 6 Stations with Rain Sensor Plug&Rain® Eco

Indoor Irrigation Controller Hunter 6 Stations with Rain Sensor Plug&Rain® Eco

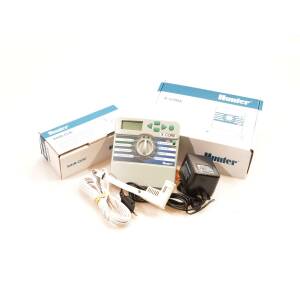

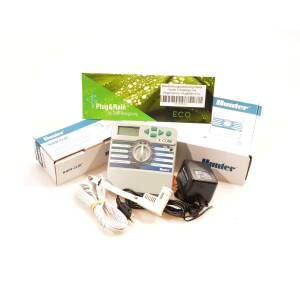

The Plug&Rain® Eco Controller Set with Hunter X-Core 601i includes all the parts needed to create a simple, low-cost irrigation control system for up to 6 irrigation circuits. It automatically controls the garden or balcony irrigation system, starting and stopping watering according to duration, cycle and start time settings. A variety of water-saving options protect against excessive watering and save costs. The enclosed rain sensor interrupts the watering cycles during a rainy period until the soil has dried again.

A Hunter irrigation controller offers:
- individual control of up to 6 irrigation circuits
- user-friendly Features
- robust and durable design
- effective feature upgrade with the Rain-Clik sensor
- option for seasonal Adjustment

Installation Instructions
This Plug&Rain® Eco controller is intended for indoor use.
- The cables are connected inside the controller casing after removing the lower panelling.
- Power supply via transformer: Two cable ends to "24VAC".
- Sensor: Remove metal bridge and connect two cable ends to "SEN".
- Valves: Connect one cable of each valve to C (common), the others separately to the control channels 1,2, etc.
- Connection of the valves via multi-core earth cable; the number of cores corresponds to the number of valves +1.

Dimensions
- Controller: approx. h: 15cm, w: 14cm, d: 4cm
- Power supply unit: approx. h: 12cm, w: 6cm, d: 6cm, cable: inlet 2m, outlet 1.8m
- Sensor: approx. h:6 cm, l: 19cm, d: 3cm, mounting lug: 9cm, cable: 7.5m

Further information

Controller:
https://www.hunterindustries.com/de/product/steuergerate/x-core#node_product_full_group_description_tab_item

Sensor:
https://www.hunterindustries.com/de/product/sensoren/rain-clik#node_product_full_group_description_tab_item

Work on 230V installations should be carried out by a qualified specialist.
