Flexible pipe for easy pipe installation for valve box and valve manifold 30 cm 1 “IG/1 ”AG Plug & Rain

Flex pipe for easy pipe installation for valve box and valve manifold 30 cm 1"IG/1"AG - Plug&Rain

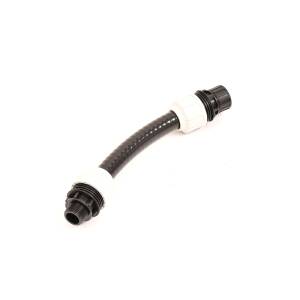

This simple but very helpful design consisting of a flexible pipe with wire wrapping cast into the material and clamp connectors is used to simplify pipe routing after the valve box and to be able to lay the pipes without tension. Once you have worked with PE pipes, you will know how rigid and stiff they can sometimes be during installation. To simplify this struggle with the pipe, this flexible pipe is screwed to the valve box or the valve manifold with the female thread side instead of the normal clamp connector. The clamp connector of the valve box/valve manifold moves to the female thread clamp connector of the flexible pipe, where the PE pipe can then be routed as usual. This makes the subsequent direction of the PE pipes much easier.

This 30 cm variant is primarily used for straight to slightly angled pipe routing.

The flexible pipe is not intended for use in continuous pressure applications.

• Width: 380 mm
• Height: 58 mm
• Depth: 58 mm

Specifications

• Connections: 1 x 1" external thread; 1 x 1" internal thread
• Maximum pressure load: 5 bar
• Material: steel wire wrapped PVC pipe
• Suitable for: Plug&Rain valve boxes and valve manifolds
• Length: 30 cm
