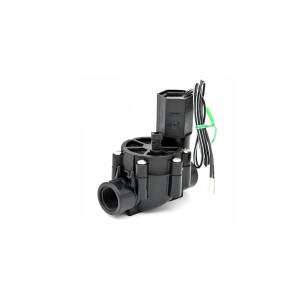

Rain Bird Solenoid Valve 075-DV, 3/4" female thread, 24 VAC

Rain Bird Solenoid Valve 075-DV - 24 VAC Model with 3/4" Female Thread

The Rain Bird solenoid valve of the DV/DVF series has been the industry leader in diaphragm valves for over 25 years and is the preferred product among professionals. It has been designed to provide reliable and long-lasting performance, making it the ideal choice for irrigation systems in private gardens and smaller public green spaces.

The 075-DV model with 3/4" female thread and 24 VAC solenoid is the perfect solution for use in irrigation systems where additional safety measures, such as pressure vacuum breakers or double-check valves, are required. Check your local regulations to ensure this valve meets the necessary requirements.

Key Features

• Double-filtered pilot-flow design (diaphragm and solenoid) for maximum reliability and dirt resistance
• Buna-N diaphragm with self-cleaning pilot water filter (90 mesh) and captive spring
• Energy-efficient solenoid with low power consumption and resin-encased protection
• Manual external relief to remove debris during installation
• Internal bleed for splash-free manual operation
• Compatible with Rain Bird TBOS pulse-controlled solenoids
• Suitable for low-flow applications and landscape drip emitters (with upstream 200-mesh filter)

Dimensions

• Length: 11.1 cm
• Width: 8.4 cm
• Height: 11.4 cm

Specifications

• Pressure range: 1.0 to 10.4 bar (15 to 150 psi)
• Flow rate: 0.05 to 5.0 m³/h
• Maximum water temperature: 43°C
• Ambient temperature: up to 52°C
• Solenoid: 24 VAC, 38 Ohms resistance
• Power consumption: 0.450 A inrush current, 0.25 A holding current
• Connections: 3/4" female thread (FPT)
