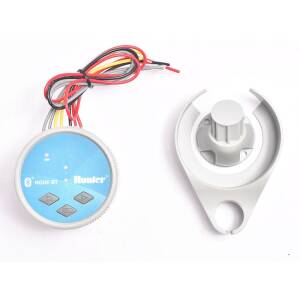

Control NODE 400-BT control unit bluetooth 4 stations. Hunter NODEBT-400

HUNTER NODE- BT 400 Bluetooth app control with 4 stations

The perfect choice when no AC power supply is available !

The waterproof NODE-BT control unit (IP68) features powerful Bluetooth technology, allowing you to manage the control unit conveniently from a smartphone. The app displays the control units by location and sends battery change reminders.

The controller can be equipped with Mini-Clik sensor, Rain-Clik sensor and with the SC-Probe soil moisture sensor
.
PLEASE NOTE: The NODE-BT control unit does not work with standard 24 V AC coils but requires valves equipped with 9 V impulse coils. This model does not contain a 9V solenoid coil.

Dimensions

• Width: 232 mm
• Height: 160 mm
• Depth: 104 mm

Specifications

• Number of stations: 4
• Watering programs: 3
• Start times per program: 8
• Running time of the stations: between 1 second and 12 hours
• Interruption of irrigation for up to 99 days
• Seasonal adjustment (monthly and global) enables faster schedule adjustments
• Can be mounted on HUNTER pulse coils or pipes in the valve box or on a flat surface
• Wearing period: 2 years
• 9 V alkaline batteries: 1 or 2
• Suitable for DC pulse coils only (P/N458200)
• Sensor ring length: 2
• Station output: 9-11 VDC - P/MV
• Output: 9-11 VDC
• 30 m maximum cable length with 1 mm² wire cross-section
• Magnetic coil not included in scope of delivery

APP specifications

• iOS 9.0 or higher
• Android 5.0 or higher
• Maximum communication range: approx. 15 m
