Angle "Blu-Lock" ø 24 x 24 mm. Blu-Lock 37374 10er SparPack

90° Elbow in the Blu-Lock system for connecting 24 mm PE pipe - Pack of 10

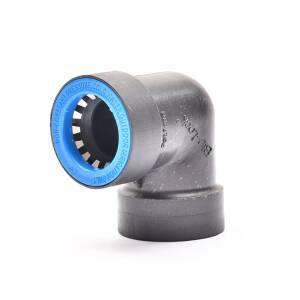

This Blu-Lock elbow is suitable for making a 90° bend in a 24 mm Blu-Lock pipe. Always use an angle where you need to lay the PE pipe in a tighter radius than that of the supplied pipe roll.
The Blu-Lock system guarantees ultra-fast installation and creates permanently tight joints without tedious screwing. The pipe only needs to be pushed in to the bottom of the connector body (approx. 2.5 cm deep).

This way, the time required for the installation of an irrigation system and, at the same time, the frequency of incorrectly made connections can be considerably reduced. The Blu-Lock tool ZZ-BL37909 is required to undo the 24 mm Connection.

Dimensions:

• Width: 59 mm
• Height: 59 mm
• Depth: 38 mm
• Weight: 40 g

Specifications:

• Internal rubber sealing lip
• Stainless steel claw ring
• Connections: 2 x 24 mm (Blu-Lock connectors)
• Maximum pressure load: 5,5 bar
• Not suitable for permanent pressure lines

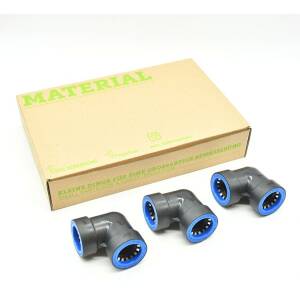

• Content: 10 pieces
