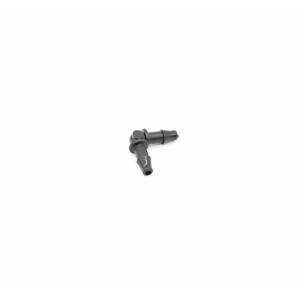

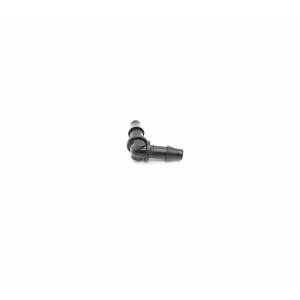

Teco 90° elbow 4.5 mm barb for micro tubing

Angle connector 90° 3/16" (4.5mm)

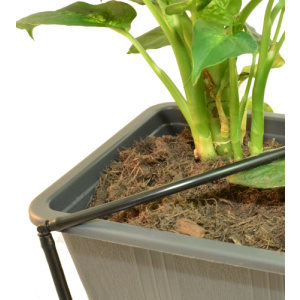

This 90° elbow can either be used to connect two micro hoses directly together or it can be inserted directly into a 16mm PE pipe supply line. To insert the connector into the main line, a hole must first be punched with a punching tool (3mm). Then one end of the branch nipple is inserted into the supply hose. A micro hose can be connected to the remaining branch.

Due to the barb shape of the connections on the elbow, the plug-in connection holds very reliably and permanently in micro hoses as well as in supply lines.

Dimensions

• Width: 19 mm
• Height: 19 mm
• Depth: 7 mm

Specifications

• Design: 90° angle
• Connections: 2 x re-hook plug-in connection for mirco hose
