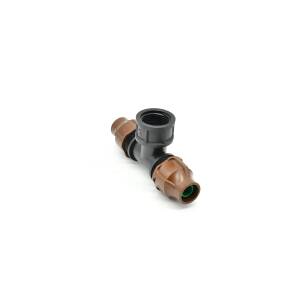

Lock Type T-connector 16 x 3/4 IG x 16 mm PE pipes

T-connector 2 x 16 mm / 3/4” female

If you are looking for a safe and uncomplicated way to connect 16 mm PE pipes or 16/17 mm drip hoses, these connectors are for you. With these connectors, the green insert is first inserted into the PE pipe or drip hose and then simply screwed into place. Here is a tip for use: It is best to slide the black cap over the hose first and then insert the insert into the hose, otherwise you have to slide it on from the other side of the pipe or disconnect the connection again.

This version is a T-connector with two 16 mm connections and a 3/4” female thread connection. The insert is made of durable polyacetal, while the rest of the connector is made of polypropylene.

Dimensions

• Width: 127 mm
• Height: 61 mm
• Depth: 35 mm
• Weight: 44 g

Specifications

• Material:Polypropylene
• Insert: Polyacetal
• Connector: Polyamide
• Connections: 1 x 16 mm; 1 x 3/4” female thread
• Suitable for: 16 mm PE pipe, 16/17 mm drip hose
