Cistern pump set Plug&Rain for sprinkler systems EXPERT - SIMPLE.HIGH-QUALITY.PROFESSIONAL.

Cistern pump set for irrigation systems with DAB DTRON3 45/90 submersible pump - Plug&Rain® EXPERT

with floating extraction and connection for 25 mm as well as 32 mm PE pipes

You want to run your irrigation with rainwater? A good decision! Because rainwater is cheap and has besides the optimal characteristics for a healthy plant growth in your garden.

Often, the performance of cistern pumps is only designed for manual water withdrawal at the garden faucet. If such a small pump is to operate an entire irrigation system, the system must be designed with many zones, which causes significant additional costs.

We therefore recommend our powerful cistern pump sets. This includes a pump with an optimal performance for irrigation systems, in this case a DTRON3 45/90 from DAB. A pump for irrigation applications should ideally reach min. 1.8 m³/h at a dynamic pressure of 3.5 bar. With this capacity, you can perfectly dimension the irrigation circuits and, for example, irrigate a lawn area of about 180 m² or about 70 m² of flower beds in one irrigation circuit with the MP Rotator.

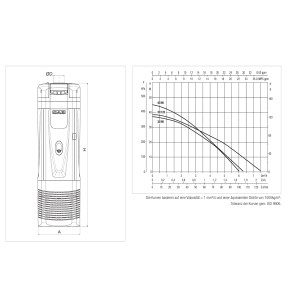

Dimensions

• Width: 530 mm
• Height: 290 mm
• Depth: 280 mm

Cistern pump set Plug&Rain® EXPERT Scope of delivery:

• DAB DTRON3 45/90 submersible pump
• Suction system with floating water intake and stainless steel strainer filter
• Connection parts for 25 mm and 32 mm PE pipes
• 3 m Rehau quality hose with all necessary connection parts in high quality metal design
• 3 m rope for lowering / removing the pump and snap hooks

Specifications DTRON3

• Suction: 1" internal thread
• Pump opening: 1 1/4" internal thread
• voltage: 230 V 50 Hz
• Nominal power: 0,6 kW
• Cable length: 15 m
• Maximum head: 45 m
• Maximum immersion depth: 15 m
• Minimum water level: 110 mm
• Maximum water temperature: 50 °C
• Maximum start-up pressure: 2.4 bar
• Maximum starts/hour: 60/h
• IP68 certified
• Floating discharge included in delivery
• Pump diameter: 185 mm
• Possible installation type:
  • Horizontal
  • Vertical
  • Submerged
  • Semi-submerged
  • Dry (accessories required)

More information about the DTRON3 can be found here.
