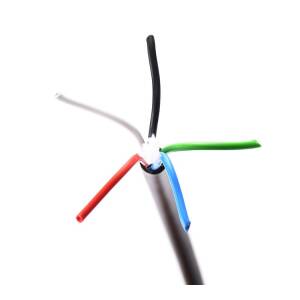

5 core premium control cable irrigation 75 m
The 5-core Premium Control Cable is ideal for controlling electrical components of an irrigation system such as solenoid valves. The 5-core premium control cable can be used to control up to 4 solenoid valves. One core is used as a ground cable for all solenoid valves and the remaining cores are connected to one connector of the control unit and one cable of the solenoid valve each.
Dimensions:
- length: 75 meters
- outer diameter: 6.5 mm
- number of cores: 5
- core cross-section: 0.75mm²
- weight: approx. 4.9 kg
Construction description:
- conductor - copper tinned according to EN 13602 ETP1 DIN 40500/46431
- conductor construction: 0,75 mm² - filament bundle 24 x 0,200 mm
- core insulation: PVC according to VDE 0207 part 4 YI8
- number of cores: 5
- core diameter: 1.80 ± 0.07 mm
- sheath insulation: thermoplastic polyether polyurethane (TPE-U)
- outer diameter: 6.40 ± 0.20 mm
Electrical and mechanical values:
- Operating voltage U: 300V AC
- Test voltage: 2500V AC
- Temperature range static: -40 to/to 90 °C
- Temperature range dynamic: -30 to/to 90 °C
Information on product safety
Manufacturer information:
Name: DVS Beregnung GmbH
Street name: Dahlienweg 13 - 15
Postal code, City: 72072 , Tübingen
Country: Deutschland
State: Baden-Württemberg
E-Mail: [email protected]
Homepage: https://dvs-beregnung.de
Street name: Dahlienweg 13 - 15
Postal code, City: 72072 , Tübingen
Country: Deutschland
State: Baden-Württemberg
E-Mail: [email protected]
Homepage: https://dvs-beregnung.de
- Shipping weight: 4,96 kg
- Item weight: 4,96 kg
- Content: 75,00 m
